by Robert Auld

turntable image.jpg

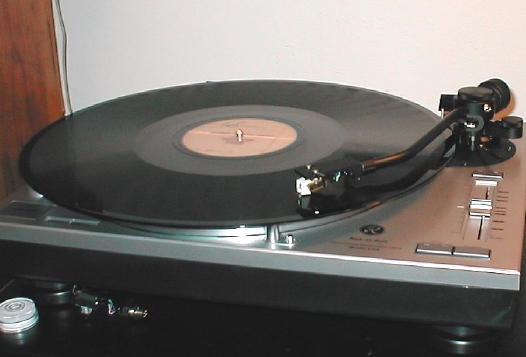

Playback of a 16 inch acetate transcription disk.
(To hear an MP3 file with an excerpt from this disk, follow this link.)

Most of us are aware of the requirements for playing modern stereo Lp's--a good turntable in good condition, with a phono cartridge, properly installed and adjusted. A phono preamp is also required, as the output of the cartridge is quite low (almost microphone level) and needs equalization to compensate for the bass cut and treble boost with which analog records are recorded. As I said, most of us know that.

However, when confronted with recordings of Enrico Caruso and his contemporaries, or with transcription disks of old radio shows, a more thorough knowledge of what is involved is necessary. To that end, this article presents an overview of the requirements for accurate vintage disk transcription. To begin, here is a list of the differences between vintage disk playback and modern Lp playback:

1. Speed. The modern Lp is almost always 33 and 1/3rd rpm. (A few 45 rpm 12 inchers have been made by audiophile labels.) The modern 7 inch single is always 45 rpm. The official standard for vintage electrical-era disks (post 1925, approximately) is 78.26 rpm. Earlier disks varied quite a bit, from 71.29 rpm for early Berliner and acoustic Victor recordings to 90 rpm and above for some Pathe disks. Broadcast transcriptions are often recorded at 33 and 1/3 rpm, though some will be at 78.26 rpm. Finding the correct speed for a particular disk is often a matter of research, combined with some educated guessing. (If you know Caruso sang "Ombra Mai Fu" in G, you will know that reproduction of that recording in A flat must be a semi-tone sharp.) And with some old disks, the speed can actually vary in the course of a side, going from, say, 78.26 rpm in the outer grooves to about 76 rpm near the label. Old time cutting lathes were not always stable or accurate.

2. Groove width. The modern Lp has grooves that are nominally 1 mil (1 thousandth of an inch) wide. [I say nominally because the specification refers to the measured width about half way down the walls of the V-shaped groove, typically the contact points for the stylus as it rides in the groove.] Electrical era 78 grooves are 3 mils wide. Earlier disks can have grooves even wider (4 to 5 mils), and one-off transcription disks can vary between 2 to 4 mils. Radio transcriptions will usually have 2 mil grooves if they are laterally cut, but many vertically cut transcription discs from the 1930s have 2.5 mil grooves.

If you try playing wide grooves with a stylus meant for the Lp standard, the stylus will ride along the bottom of the groove, which will add lots of noise to the signal. Further, old records can be worn from being played on heavy-tracking old record players. Picking a stylus size that rides above or below the main wear track on the groove walls can improve the sound considerably.

Lateral cut broadcast transcriptions can be played with a 2.7 to 3 mil stylus intended for typical 78 rpm records, but there will be added noise and distortion from using the over-sized stylus. Such records sound much better with a 2.0 mil stylus. (To hear examples of this, go to the Radio Transcription Playback section.)

3. Equalization. The modern Lp uses what is known as the RIAA curve. (RIAA stands for Recording Industries Association of America.) On playback, this imparts a substantial bass boost and treble cut, the inverse of how the record was recorded. However, the RIAA curve only became a standard in 1954. Most disks recorded before that date use other EQ curves, or none at all. For example, a record of Caruso (acoustic era) would not have been recorded with any equalization other than that imparted by the recording horn. One should at least start by reproducing it flat, with no EQ curve. It may then help to roll off the treble to reduce surface noise, which brings us to the reasons for equalization in the first place:

A. Bass waveforms are large and can take up lots of room on a disk. In the acoustic era this was not a problem, as the primitive recording horns could not capture enough low frequency energy to inscribe it onto the disk in the first place. But with the introduction of microphones and electrical cutter heads, that all changed. Now lots of bass could be recorded, making it easy to run out of disk space very quickly. The solution was to roll off the bass response during recording and get it back on playback with a complementary bass boost. Early electrical 78's used a rather gentle bass boost with a corner frequency of 250 to 300 Hz. As time went on, more aggressive curves were tried, some even exceeding the modern RIAA bass turnover. Finding which of the available bass curves should be used for a particular pre-1954 disk can involve some research and, sometimes, some critical listening as well.

B. Treble. Again, early acoustic disks used no equalization in the high end, which is one reason why they tend to have lots of surface noise. Early electrical 78's did not use treble EQ either and, theoretically, should be played back with no treble rolloff. It was only a matter of time until boosting treble during recording and cutting it during playback was tried for reasons of noise reduction. Starting in the late 1930's, treble rolloff of -5 dB (at 10 kHz relative to 1 kHz) and -10 dB became common. After World War II, even more aggressive curves were tried, culminating in the NAB treble rolloff, used for some broadcast transcriptions and for the first Columbia Lp disks. The RIAA treble rolloff finally adopted in 1954 could be described as -13.7 dB at 10 kHz, actually a step back from the more aggressive NAB curve.

4. Disk size. We are used to 12 inch diameter Lp's, 10 inch Lp's (common in the 1950's, seldom seen now) and 7 inch 45 rpm singles. In the electrical 78 era, most commercial releases were either 12 inch or 10 inch diameter. Acoustic era disks, as you might expect, varied a good deal; while the 10 inch disc was probably the most common, there were other diameters, including oversize discs of 14 inches or so. And disc thickness varied as well; Edison Diamond Disks are nearly 1/4 inch thick, several times the thickness of most other disks. Put one of those on your turntable and you had better be able to adjust the height of your tonearm. Then there are broadcast transcriptions, a category unto themselves. Due to the need for extended playing time when broadcasting, those discs can be up to 16 inches in diameter or even larger. Most modern consumer record players cannot accommodate them; the arm pivot is usually too close to the turntable to clear a 16 incher.

5. Groove modulation. We usually think of record grooves as moving laterally, that is, from side to side on the disk surface. Stereo records, of course, also use some vertical modulation in order to give us two channels from one groove. Most vintage disks use lateral modulation exclusively, which translates to a monophonic signal when played with a modern, stereo cartridge. Summing both channels to mono gives you all of the music, with some reduction in surface noise.

However, some vintage disks, in particular those made by Edison and Pathe, use vertical modulation exclusively; the groove moves up and down, not side to side. There are also broadcast transcriptions that use vertical modulation, especially those made with Western Electric recorders in the 1930's. Played with a stereo cartridge, such records will sound rather weird in stereo and when summed to mono--the sound will disappear! To play these records with a modern cartridge, it is necessary to first wire one channel out of polarity and then sum both channels to mono. Only then will the result be equivalent to mono playback of a lateral cut record.

As you can see, accurate playback of vintage disks requires a good deal of specialized knowledge along with some unusual equipment. Here is an outline of a good modern playback system that will handle most vintage recordings:

  • A multi-speed turntable, preferably with infinite variability over the range of speeds most commonly encountered (typically from 65 to 90 rpm). The turntable motor should be robust enough to deal with high speeds and heavier than usual disks. Rumble, wow and flutter should all be at typical good quality values or better. (Examples: Rek-O-Kut CVS direct drive restoration deck, available from Esoteric Sound, various models of Technics direct drive turntables.)

  • A tonearm somewhat longer than the 9 inch arm (pivot to stylus distance) typically used for playing Lp's, mounted far enough from the turntable spindle to accommodate up to 16 inch diameter disks. It should have a detachable head shell to make changing cartridges easy and it should be simple to adjust for varying tracking forces, especially those on the heavy side (3 to 7 grams). It doesn't hurt if it is a really precise piece of gear, suitable for the highest quality Lp playback. (Examples: Rek-O-Kut Transcribe tonearm, available as an option for their CVS turntable. SME is also known for making longer arms of high quality.)

  • A good but rugged stereo cartridge with a selection of different size styli for playing varying groove widths. (Examples: The Stanton 500 series, for which custom styli in a wide variety of widths are available, and the Grado DJ100 cartridge, also available with various custom styli.)

  • A good quality phono preamp with either variable equalization curves built in or some means of changing the equalization further downstream. (Examples: KAB Electro-Acoustics makes phono preamps with multiple switchable EQ curves. Esoteric Sound makes their Re-equalizer which is used after a conventional RIAA curve preamp and offers separate bass and treble curve settings.)

Finally, it helps to have a good computer-based digital audio recording system with specialized restoration software for preserving and, we hope, improving the sound of our transcriptions.

Copyright 2005, Robert Auld
